Landfill sites generate leachate—a contaminated liquid rich in ammonia, organic pollutants and biological oxygen demand (BOD)—that must be treated before it can be safely discharged or released into the environment. One of the most proven and cost-effective ways to manage this challenge is the Sequencing Batch Reactor (SBR), a biological treatment system that has been used reliably at landfill sites around the world for decades.
What Is a Sequencing Batch Reactor?
A Sequencing Batch Reactor is a relatively low-technology aeration system built around one or more tanks—typically constructed from GRP (glass-reinforced plastic), glass-lined metal, or concrete. Inside each tank sits pumping and aeration equipment, carefully sized to balance oxygen transfer, energy consumption, heat conversion, and ongoing maintenance requirements.
Unlike continuous-flow treatment plants, an SBR processes leachate in discrete batches, cycling through a series of clearly defined stages within the same tank:
- Fill – leachate enters the reactor
- Aeration – biological treatment takes place
- Settlement – solids separate from treated liquid
- Discharge – clarified supernatant is withdrawn
- Sludge withdrawal – excess biomass is removed
- Standby – the reactor awaits its next batch
SBR technology has been proven through many applications to be a reliable, economic and long-term solution for treating leachate derived from municipal solid waste.
How the SBR Process Works
At the heart of the SBR is a naturally occurring bacterial culture maintained within the reactor. These bacteria are responsible for breaking down organic pollutants and, crucially, for nitrifying ammonia—one of the most persistent and problematic contaminants found in landfill leachate.
The entire cycle is automated using programmable logic controllers (PLCs) and timers, allowing leachate to be delivered in batches from the site to whichever bio-reactor is scheduled to receive it (where multiple vessels are installed).
Once filling begins, a sequence of biological processes is triggered:
- Biological conversion of organic pollutants – reducing BOD
- Nitrification – converting ammonia into less harmful nitrate compounds
- Denitrification – occurs where a sufficiently long anoxic period is allowed
- Biological phosphate uptake – further improving effluent quality

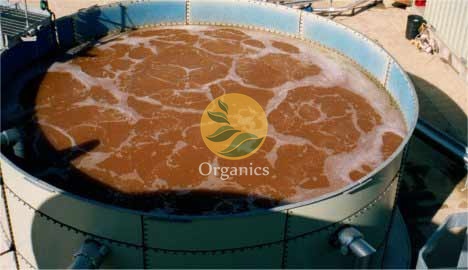

Air injection and mechanical mixing drive these biological reactions. Once the desired treatment result is achieved, aeration and mixing stop. The activated sludge then settles to the bottom of the tank, leaving a clear supernatant above it, which is withdrawn as treated effluent. The residual sludge remains in the tank, acting as a bacterial inoculant for the next batch—meaning the system essentially “seeds” itself cycle after cycle.
Key Features and Benefits
| Feature | Benefit |
|---|---|
| Simple, low-maintenance process | Reduces operator burden and long-term running costs |
| Scope for thermal insulation | Enables all-weather operation, even in cold climates |
| Low operational cost | Delivers savings relative to more complex treatment technologies |
| Withstands shock loads | Copes with variable leachate volumes and strengths |
| Handles heavy metals & toxic components | Suitable for the variable composition of landfill leachate |
| Effective ammonia removal | Reduces ammonia to very low levels |
The SBR is especially effective in removing ammonia to very low levels, while requiring less supervision than many more complex treatment systems.
Why SBR Suits Landfill Applications
Landfill leachate composition and volume can vary significantly over time and between sites, which makes robustness and flexibility essential in any treatment solution. The SBR’s batch-based operation makes it particularly well suited to this variability, since each cycle can be adjusted—in duration and intensity—to match the incoming leachate load.
Cost Considerations
The overall cost of an SBR installation depends primarily on two factors:
- Volume of leachate to be treated
- Quality (strength/contaminant load) of the leachate
Relative to the capital costs of other treatment options, SBRs can offer significant savings, making them an attractive choice for landfill operators seeking a dependable, budget-conscious solution.
Typical Applications
SBRs are particularly suited to:
- Municipal solid waste landfill sites
- Locations requiring low-supervision, low-maintenance treatment
- Sites needing resilience against variable or shock-loaded leachate
- Cold-climate installations (with thermal insulation options)
Complementary Leachate Treatment Technologies
SBRs are often just one part of a broader leachate management strategy. Depending on site-specific requirements, they may be used alongside other treatment technologies, including:
- Anoxic reactors
- Reverse osmosis plant
- Ammonia stripping plant
- Anaerobic treatment systems
Combining these technologies allows treatment strategies to be tailored to the specific chemistry and volume of leachate produced at a given site.
Key Takeaways
- SBRs treat landfill leachate in batches through fill, aeration, settlement, discharge, sludge withdrawal, and standby phases.
- Naturally occurring bacteria cultured within the reactor drive nitrification, denitrification, and organic pollutant breakdown.
- The process is fully automated via PLCs and timers, minimising the need for constant supervision.
- SBRs are especially effective at reducing ammonia to very low levels and can withstand shock loads and toxic components, including heavy metals.
- Compared to other treatment options, SBRs typically offer lower capital and operational costs.
