Wastewater treatment plants around the world are facing the same growing challenge: more biosolids to treat, tighter effluent standards, and rising costs for disposal, energy, and labour. Temperature Phased Anaerobic Digestion (TPAD) is an advanced digestion technology that directly addresses this challenge – producing more biogas, better quality digestate, and lower operating costs than conventional single-stage digestion, without the need for high-pressure equipment.
This article breaks down how TPAD works, why it outperforms mesophilic and thermophilic digestion alone, and how it compares with Thermal Hydrolysis Process (THP) systems.
What Is TPAD?
TPAD is an Advanced Anaerobic Digestion technology built around two reactor vessels operating in series: a thermophilic reactor followed by a mesophilic reactor. This two-stage, two-temperature configuration allows each stage to be optimised for the biological process happening within it, rather than forcing every stage of digestion to occur under one compromise set of conditions.
Compared with thermal sludge hydrolysis (THP) followed by mesophilic digestion, TPAD:
- Reduces feed solids pre-thickening requirements (and the electrical load that comes with it)
- Reduces the temperature needed for effective hydrolysis in the first reactor, cutting thermal energy demand
- Reduces solids retention time needed for effective digestion
- Increases methane gas productivity
- Increases hygienisation of the biosolids
- Improves final digestate dewaterability
- Facilitates recovery of ammonia from centrate
The Biosolids Challenge
Biosolids treatment and disposal is one of the largest ongoing costs for any wastewater treatment facility, alongside energy consumption and personnel. As populations grow and effluent standards tighten, the volume of biosolids requiring disposal keeps rising.
There are really only two levers available to reduce this burden: minimising waste at the source, or improving the efficiency of the treatment technology itself. TPAD is firmly in the second camp – and the data shows it delivers a clear improvement in organic matter removal and biogas production compared to both mesophilic-only and thermophilic-only digestion.
TPAD increases hydrolysis of organic matter, which also raises ammonia nitrogen concentration in the anaerobic supernatant – creating a genuine opportunity to recover that ammonia as a saleable product.
How the Process Works
The Four Stages of Anaerobic Digestion
Anaerobic digestion progresses through four bacteriological transitions: hydrolysis, acidogenesis, acetogenesis, and methanogenesis. Each stage is carried out by a different type of bacteria or archaea.
In a conventional single-stage digester, all four steps happen simultaneously in the same tank. This forces every microbial population to co-exist within one narrow band of pH and temperature, governed by a single organic loading rate and hydraulic retention time. Because methanogens are slow growers and easily inhibited, this compromise limits how hard the system can be pushed.
Splitting the Process: Why Two Stages Work Better

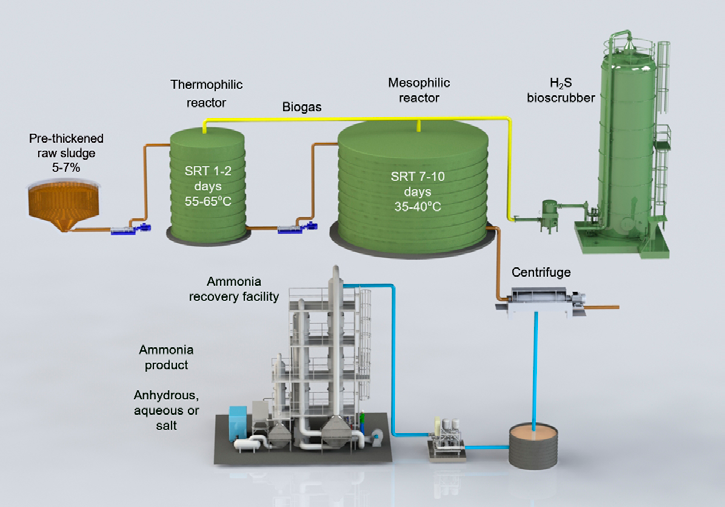

TPAD physically separates the microbial populations into two vessels:
- Thermophilic reactor – hydrolysis and acidogenesis take place here, at 55-65°C, over a short solids retention time (SRT) of 1-2 days.
- Mesophilic reactor – acetogenesis and methanogenesis take place here, at 35-40°C, over a longer SRT of 7-10 days.
This separation lets operators push the rate-limiting hydrolysis step harder – higher temperature, higher organic loading, shorter retention time – without disturbing the more sensitive methanogens downstream in the second reactor.
Hydrolysis: The Rate-Limiting Step
Hydrolysis – from the Ancient Greek for “water” and “to unbind” – is the chemical reaction in which a water molecule breaks a chemical bond. Within anaerobic digestion, it is the primary rate-limiting step in biogas production, and can be achieved either through high temperature and pressure, or through hydrolytic bacteria.
Biological hydrolysis, as used in TPAD, relies on hydrolytic bacteria and their enzymes to break down complex polymers (carbohydrates, protein, fat) into simpler soluble monomers (sugars, amino acids, long-chain fatty acids).
Thermal hydrolysis (THP), by contrast, uses high-pressure boiling followed by rapid decompression to sterilise sludge and improve its biodegradability.
TPAD achieves biological hydrolysis thermophilically, without requiring high pressure. The first-stage reactor can even be run at a lower pH than methanogens would tolerate, specifically to favour hydrolytic bacteria – driving a higher rate of organic matter degradation and, in turn, higher methane production. Sterilisation to acceptable effluent standards can be engineered into the system design.
Key Features at a Glance
| Feature | Benefit |
|---|---|
| Two-phase digestion (thermophilic → mesophilic) | Separates microbial populations for optimal performance |
| Enhanced biological hydrolysis in Stage 1 | Improves biodegradability of feedstock |
| Adjustable Stage 1 retention time | Facility can be tuned to meet statutory hygienisation requirements |
| Higher biogas yield vs single-stage | More energy recovered per tonne of feed |
| Improved biosolids dewaterability | Reduced volume for disposal |
| No high pressure required | Simpler, lower-cost vessel design |
| Ammonia harvesting potential | Additional recovery/revenue stream |
Reactor Operating Parameters
| Parameter | Thermophilic Reactor | Mesophilic Reactor |
|---|---|---|
| Solids retention time (SRT) | 1-2 days | 7-10 days |
| Operating temperature | 55-65°C | 35-40°C |
| Feed solids concentration | 5-7% (pre-thickened) | – |
Dewaterability and Pathogen Removal
Dewaterability describes how easily sludge flocs release the water trapped within them. Sludge water exists in three forms: free water (unaffected by solids), interstitial water (trapped between particles), and surface water (adsorbed onto particle surfaces). TPAD is generally found to improve dewaterability, and combined with increased biosolids removal in the digester, this leads to considerably less digestate volume requiring disposal.
Pathogen removal – a critical requirement for biosolids destined for agricultural reuse – is also a strength of TPAD, with performance further tunable via adjustments to the first-stage solids retention time.
TPAD vs Thermal Hydrolysis (THP)
Choosing between TPAD and THP followed by mesophilic digestion requires site-specific analysis, but some differences are consistent:
- Feed thickening: TPAD needs only 6-7% solids vs 15-16% for THP
- Temperature: TPAD’s first stage runs at 55-65°C vs 150-180°C for THP
- Pressure: THP requires pressure vessels rated for 8-10 bar; TPAD needs none
- Power and electricity: TPAD requires less to operate
- Capital and operating cost: TPAD is normally lower on both counts
- Retrofit: TPAD is generally easier to retrofit into existing facilities
- Heating: TPAD can be fully heated using heat recovered from a generator; THP must burn biogas to reach reactor temperature
THP does perform slightly better on dewaterability and gas production in some designs, since its higher pressures and temperatures reduce biosolids further – but this comes at a materially higher capital and operating cost.
Advanced TPAD designs can extend the first-stage hydraulic residence time to promote faster, thermophilic methanogenesis at higher reaction rates than mesophilic methanogenesis achieves. In this configuration, the second stage can be downsized to a simpler soluble BOD polishing role, reducing overall investment cost while still delivering higher methane yield than a purely mesophilic digester.
Biogas and Digestate: Turning Waste Into Value
Biogas produced through TPAD can be used directly as thermal energy for boilers, burned in gas engines for electricity generation, or upgraded further. Cleaned of carbon dioxide, biogas becomes purer methane – a carbon-neutral fuel that can be compressed for vehicle use (bioCNG) or even cracked to produce hydrogen. The recovered carbon dioxide itself has value, for example as a feedstock for methanol production.
Digestate, too, has multiple beneficial end uses when properly treated:
- Animal bedding (solids)
- Nutrient-rich fertiliser (solids and liquids)
- Feedstock for bio-based products such as bioplastics
- Organic-rich compost (solids)
- General soil amendment / land spreading
Digestate retains macronutrients (nitrogen, phosphorus, potassium, calcium, sulphur, magnesium) and micronutrients (boron, chlorine, manganese, iron, zinc, copper, molybdenum, nickel) from the original feedstock, in plant-available form. Studies have shown digestate-based fertiliser can match or exceed crop yields achieved with commercial fertilisers.
Ammonia Recovery: An Added Revenue Stream
One of TPAD’s standout advantages is the concentration of ammonia nitrogen it generates in the anaerobic supernatant – a direct result of enhanced hydrolysis. This creates an opportunity to recover ammonia using thermal stripping technology, rather than relying on conventional biological de-nitrification.
Thermal ammonia stripping is particularly cost-effective for wastewaters above 1,000 mg ammonia-N per litre, such as THP side-stream liquors, anaerobic digester centrate, and landfill leachate. The process works by using heat alone to break the ammonium-ion bond, then removing the dissolved gaseous ammonia using air.
Benefits of Thermal Ammonia Recovery
- No pH adjustment required
- No sludge produced
- Small footprint
- Can run on waste heat or primary fuel
- Handles large fluctuations in ammonia concentration
95% plant availability
- Easy to operate and maintain
- Rapid start-up and shutdown
- Removes >98.5% of ammonia from most high-strength wastewaters (>1,000 mg/l)
- Does not affect centrate COD
- Improved biosolids/COD ratio increases biogas yield
- Enables on-site power generation, green fertiliser, or aqueous ammonia products
Removal rates greater than 98.5% in a single pass are typically guaranteed – and clients have reported operational savings in the millions of dollars annually.
Beyond the direct cost savings, removing ammonia this way also avoids the nitrous oxide (N₂O) emissions associated with biological aeration treatment – a significant greenhouse gas – while cutting the electricity consumption tied to aeration. That makes thermal ammonia recovery a meaningful contributor to a treatment plant’s carbon neutrality goals.
Typical System Components
A complete TPAD-based waste-to-energy system typically includes:
- Waste thickening
- Thermophilic digester
- Mesophilic digester
- Ammonia control and recovery
- Hydrogen sulphide control
- Biogas pumping equipment
- Biogas processing systems
- BioCNG, burners, and/or power generation equipment
Key Takeaways
- TPAD combines a thermophilic hydrolysis/acidogenesis stage with a mesophilic acetogenesis/methanogenesis stage, letting each be optimised independently.
- It delivers higher biogas yield and shorter retention times than single-stage mesophilic or thermophilic digestion.
- It improves digestate dewaterability and pathogen removal, reducing disposal volumes and supporting agricultural reuse.
- Compared to THP, TPAD needs less feed thickening, lower temperatures, no pressure vessels, and generally lower capital and operating costs.
- The elevated ammonia concentration in TPAD supernatant creates a strong business case for thermal ammonia recovery, capable of removing >98.5% of ammonia and generating significant operational savings.
