Sewage Sludge Pyrolysis: Turning a Disposal Problem into Renewable Energy

Sewage sludge is one of the fastest-growing waste streams in the modern world. As cities expand and municipal infrastructure develops, the volume of sludge requiring safe, sustainable disposal keeps climbing — and traditional routes for getting rid of it are rapidly closing off. Pyrolysis technology offers a compelling alternative: a way to safely dispose of sludge while simultaneously generating renewable energy.

The Growing Sewage Sludge Problem

For decades, landfill and ocean dumping were the default answers to the sewage sludge question. Both routes are now under serious pressure. The London Protocol has placed restrictions on ocean disposal, and land application of sludge is increasingly viewed with suspicion — several European countries have already banned sludge-based fertilisers due to concerns over residual synthetic hormones and pharmaceutical compounds contaminating soil and groundwater.

Conventional disposal methods — landfilling, ocean dumping, composting, and standard incineration — have all been linked to real environmental harm: contaminated water reservoirs, polluted farmland, damaged marine ecosystems, and the release of hazardous gases into the atmosphere. Something better is needed, and it needs to scale from small municipal works right up to major urban treatment plants.

As a result of the London Protocol, ocean disposal and landfill restrictions came into force from 2012 — pushing the search for alternative sewage sludge disposal methods from “nice to have” to “urgent necessity.”

What Is Pyrolysis, and Why Does It Matter?

Pyrolysis is the thermal decomposition of organic material in a completely oxygen-free atmosphere, typically at temperatures between 300°C and 900°C. Without oxygen present, true combustion cannot occur — instead, the carbonaceous content of the sludge is converted into a combustible gas (pyrogas) and an inert char/ash residue.

This distinction from incineration is critical. Incineration relies on excess oxygen and full combustion, converting waste entirely into energy and ash in one step. Pyrolysis and gasification instead deliberately limit the reaction so the sludge is converted into intermediate energy-rich products — pyrogas and char — that can then be used flexibly for power generation or further processing.

Because there’s no significant combustion taking place, the volumetric gas flows from a pyrolysis system are far lower than from an incinerator, and — crucially — the toxic by-products of partial combustion, such as dioxins and furans, simply cannot form when oxygen is excluded from the reaction.

With no burning or open flames involved, and no oxygen present during thermal degradation, the Clean Pyrolysis process delivers a notably low-emission route to sludge disposal.

How the Clean Pyrolysis System Works

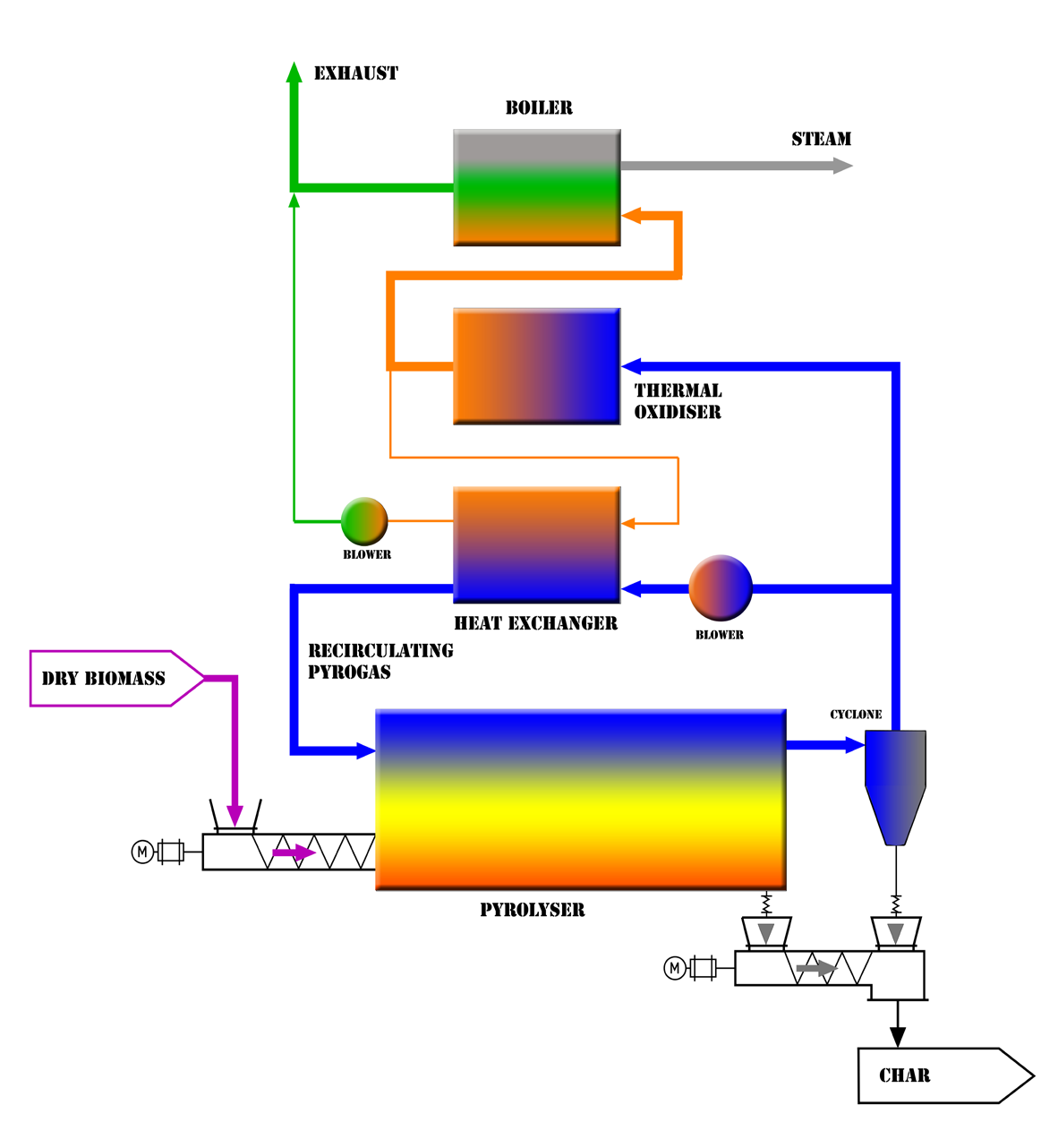

The system uses its own generated pyrogas as the heat source for the pyrolysis reaction itself, creating a self-sustaining thermal loop. A typical system configuration includes:

• Sludge reception and feed
• Drier (to reduce moisture content ahead of thermal treatment)
• Pyrolyser (the core reaction chamber)
• Thermal oxidiser (for the steam-cycle configuration)
• Boiler and steam turbine
• Gas clean-up equipment (for pyrogas engine cycles)
• Gas engine or gas turbine for power generation

Moisture content is one of the most important design variables. Wet feedstock requires additional thermal energy for drying before the pyrolysis reaction can proceed efficiently, and that energy is deducted directly from the plant’s net performance. Early sector projects that overlooked this factor suffered noticeably degraded performance — which is why thorough waste characterisation is treated as a non-negotiable first step.

Two Power Configuration Options

Depending on the nature of the feedstock, the system can be configured in one of two ways:

• Steam-cycle — suited to inhomogeneous biomass streams and more difficult waste types
• Direct-combustion in spark-ignition engines — suited to “clean” biomass streams

Technical Specifications

Equipment Ranges: K-Range and T-Range

Organics segments its Clean Pyrolysis equipment into two families based on throughput:

• K-Range — for waste streams typically below 1 dry tonne per hour, generally supplied as a containerised unit. Gas-engine configurations are common here, drawing on established expertise in running engines on biomass-derived syngas.
• T-Range — for larger mass flows up to 240 dry tonnes per day, requiring bespoke engineering and on-site process installation. Steam-turbine configurations offer a proven, bankable route to electricity production via syngas combustion in a boiler.

Both ranges are being developed further to exploit syngas in Organic Rankine Cycle machines and Stirling engines, broadening the options available as the technology matures.

Beyond Sewage Sludge: Other Applications

While sewage sludge disposal is the primary application, the same Clean Pyrolysis principle — heating in a completely oxygen-free environment — extends to a range of other challenging waste streams:

• Clinical waste, with simultaneous power generation
• Scrapped vehicle fragment waste
• Used tyres
• Mixed metalliferous and organic scrap, such as electrical cabling and automotive components

Rather than sending these materials to landfill, pyrolysis can convert them into resaleable commodities, co-firing fuel products, or simply achieve a dramatic reduction in weight and volume for easier, cheaper disposal. In high-energy-recovery scenarios, the resulting carbon char can even be further gasified to squeeze out additional energy value.

Planning a Project: The Route to Implementation

Deploying a sewage sludge pyrolysis system isn’t simply a matter of buying equipment — it follows a structured project route:

1. Waste stream verification and characterisation — especially moisture content
2. Desk study to evaluate electricity generation potential
3. Field data collection to identify site-specific viability factors (cabling routes, ground conditions, grid proximity)
4. Fatal flaw analysis
5. Capacity analysis — sizing the plant to either fully exploit the available feedstock or mitigate supply risk
6. System design — covering waste processing, gas treatment, generator location and electrical connection
7. Procurement of component parts
8. Construction and commissioning
9. Ongoing operation and maintenance

Site-specific factors matter enormously. A facility located a long way from a grid connection, for instance, may need expensive underground cabling — a cost that can quickly outweigh the value of the energy revenue generated, so this needs to be assessed early via desk study and field data collection before committing to full implementation.

Why Choose Pyrolysis Over Incineration or Gasification?

All three thermal treatment routes — incineration, gasification and pyrolysis — can recover value from sewage sludge, but they differ meaningfully in environmental impact:

• Incineration involves full combustion in excess oxygen, the very conditions under which dioxins and furans can form.
• Gasification involves partial combustion — better than incineration, but still not fully clean.
• Pyrolysis takes place in a genuinely oxygen-free atmosphere, avoiding significant combustion altogether, which keeps gas volumes low and eliminates the chemistry that produces these toxic by-products.

Using local sewage sludge as CHP fuel in this way also provides a sustainable, effectively carbon-neutral energy source, since the biogenic carbon released was originally captured through the natural biomass growth cycle.

Key Takeaways

• Sewage sludge volumes are rising, and traditional disposal routes (landfill, ocean dumping) are increasingly restricted or banned.
• Pyrolysis thermally decomposes sludge at 300–900°C in a fully oxygen-free environment, avoiding the formation of dioxins and furans.
• The Clean Pyrolysis system uses its own generated gas as the heat source, requires no open flame, and delivers low emissions.
• Systems scale from 3.6 to 240 tonnes per day, achieving up to ~30% overall efficiency in pyrogas/engine configurations.
• Beyond sewage sludge, the same technology handles clinical waste, tyres, and mixed metal/organic scrap.
• Careful waste characterisation (particularly moisture content) and site-specific project planning are essential to successful implementation.
